In the global pharmaceutical, nutraceutical, and food packaging industries, precise counting and zero-defect quality control are no longer optional advantages—they are mandatory standards. With increasingly stringent cGMP, FDA, and CE regulatory requirements, manufacturers are facing unprecedented pressure to eliminate counting errors, reduce defective product rate, and achieve full-process production traceability. Even a small number of miscounted bottles or mixed defective particles can lead to huge economic losses and irreversible damage to brand reputation.
For decades, automatic counting machines have replaced inefficient error-prone manual counting and become the core equipment of bottle packaging lines. However, many production managers still struggle with equipment selection confusion. Traditional photoelectric capsule counting machines and emerging vision counting packing machines dominate the current market, yet most enterprises cannot accurately distinguish their applicable scenarios, technical limitations, and long-term value. Choosing inappropriate equipment often results in low production efficiency, frequent quality risks, and wasted investment costs.
The fundamental performance gap between photoelectric counting and AI vision counting stems from their completely different underlying technical logic. Understanding the working mechanism is the premise of accurate equipment selection, as it directly determines the equipment’s detection limit, functional boundary, and production adaptability.
RQ-DSL-16H photoelectric tablet counter machine adopts mature and stable infrared laser photoelectric induction technology, which has been optimized and iterated for decades in the packaging industry. The equipment is equipped with imported high-sensitivity independent photoelectric sensors for each detection channel, forming a stable and continuous laser detection light beam. When materials such as tablets and capsules fall vertically through the detection channel, the particles will instantly block the laser beam, causing real-time changes in the optical signal received by the sensor. The high-stability Panasonic PLC system quickly converts the optical signal fluctuation into electronic pulse signals, completes accurate single-particle counting through algorithm logic judgment, and cooperates with the pneumatic system to realize quantitative bottling.

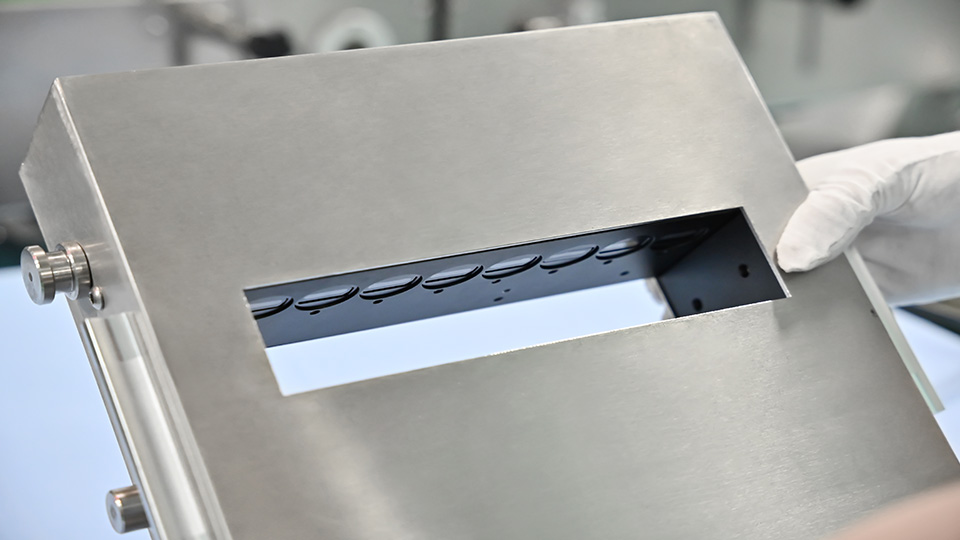

photoelectric counting module
Completely different from the single-function induction mode, Rich Packing’s visual counting machine represents the latest intelligent upgrading direction of the industry, realizing a revolutionary leap from “simple counting” to “counting + full inspection + automatic rejection”. The equipment is equipped with high-resolution cameras and a full-area self-adaptive fill light module, which can capture high-definition full-frame images of each particle in real time during the high-speed falling process of materials.

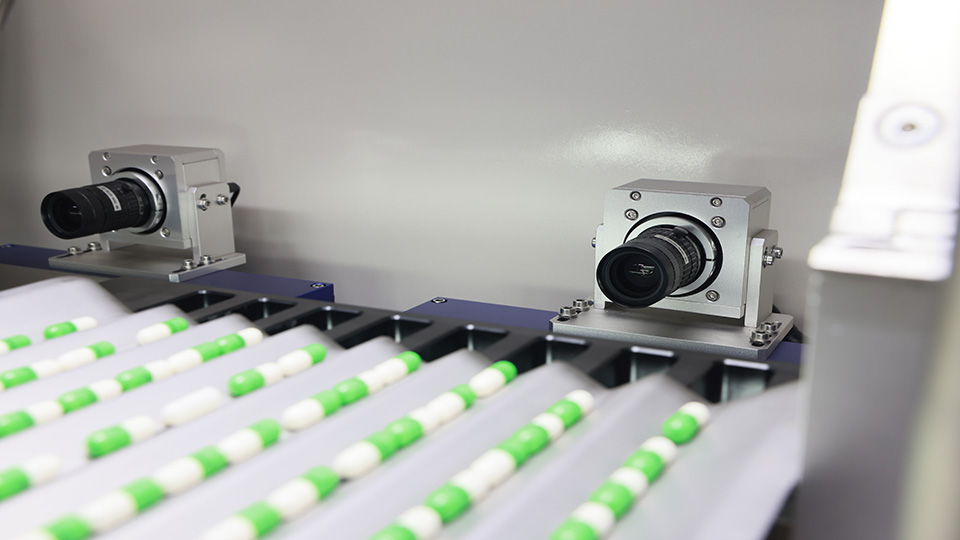

vision inspection module
Relying on the in-depth learning algorithm independently trained and iterated by Rich Packing’s professional R&D team, the system performs pixel-level fine feature analysis on each captured particle image, including shape contour, particle size specification, surface integrity, color uniformity, and texture characteristics. Through massive material sample training, the AI model can intelligently distinguish qualified products from various unqualified defective materials. Once defective particles are identified, the equipment will instantly trigger the high-frequency pneumatic rejection system to accurately eliminate unqualified products in a non-stop production state, realizing one-stop integrated production of high-precision counting and full-quality screening.
In terms of counting accuracy for standard materials, Rich Packing RQ-DSL-16H photoelectric tablet counting machine delivers stable and reliable performance, maintaining a counting accuracy rate of 99.98% for conventional regular particles such as standard tablets and hard capsules. The multi-channel parallel detection design supports continuous and stable operation for long-term mass production of single-specification standardized materials, fully meeting the basic accuracy requirements of conventional packaging production lines.
Nevertheless, restricted by the single-point laser induction principle, the photoelectric capsule counting machine has prominent limitations in material adaptability. It cannot effectively identify stacked, adhered, and tilted particles, and is difficult to sense tiny particles and transparent materials such as transparent softgels. When facing special-shaped health care particles, sticky gummies, and irregular granular products, the equipment is prone to missing counts and repeated counts, resulting in fluctuating accuracy.
Rich Packing CCD camera counting machine completely breaks through the technical bottlenecks of photoelectric detection with pixel-level image recognition capability. Its comprehensive counting accuracy rate is stably upgraded to 99.99%, achieving ultra-high-precision counting in all material scenarios. The AI algorithm can intelligently identify and split stacked and adhered particles, accurately capture tiny individual particles that cannot be sensed by laser beams, and perfectly adapt to full-type materials including standard tablets, hard capsules, transparent softgels, mini health particles, special-shaped gummies, and irregular granular products. It thoroughly solves the long-standing counting deviation problem of special and complex materials in traditional counting equipment.

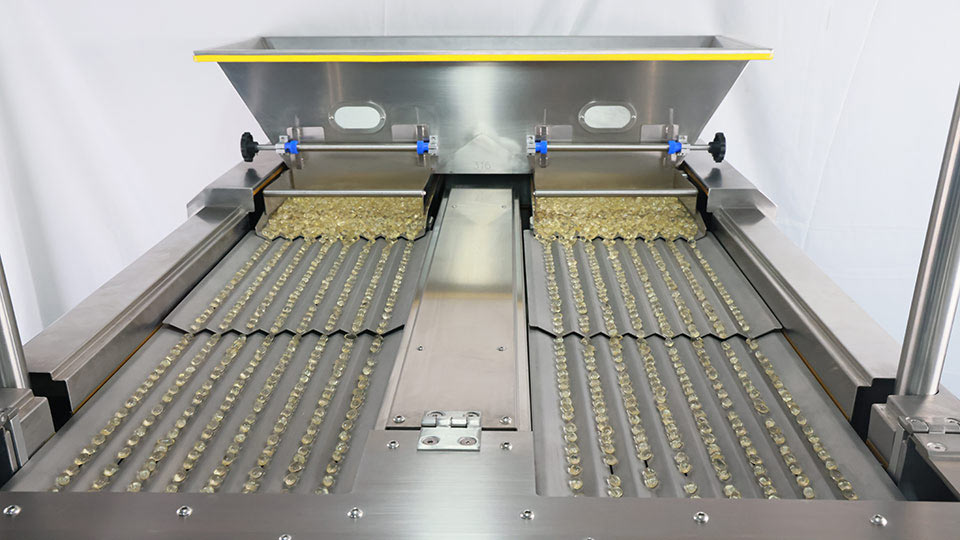

softgel counting in vision counting packing machine
Quality inspection capability is the core gap between photoelectric counting equipment and AI vision equipment, and it is also the key factor determining product qualification rate and enterprise quality control level. The RQ-DSL-16H photoelectric tablet counting machine only supports single quantitative counting and has no independent quality detection function. The system can only judge whether the total number of particles in a bottled product meets the standard, but cannot identify single defective particles in the production process.
Common production defects such as broken tablets, chipped capsules, empty hard capsules, discolored particles, unformed materials, and surface foreign matter will be directly mixed into finished bottles with qualified products. In this case, enterprises have to arrange special personnel for secondary manual inspection, which not only increases labor costs and production cycle costs, but also inevitably produces missing inspection risks, leaving hidden dangers for product quality and market compliance.
The independent AI defect identification and automatic rejection technology is the exclusive core advantage of Rich Packing’s high-end vision counting bottling machine, and it is also the core value of intelligent upgrading of modern counting production lines. After long-term sample training and algorithm optimization, the equipment can intelligently identify more than 20 kinds of common production defects covering particle appearance and quality. In the high-speed continuous production state, the system can instantly locate each unqualified particle, trigger the high-precision pneumatic rejection device within milliseconds, and accurately eliminate defective products without shutting down or slowing down the production line.
This one-stop integration of counting and inspection completely cancels the traditional manual re-inspection process, realizes full-automatic zero-defect production of granular products, fundamentally avoids defective product outflow, and helps enterprises build a closed-loop quality control system that meets international high-standard supervision.

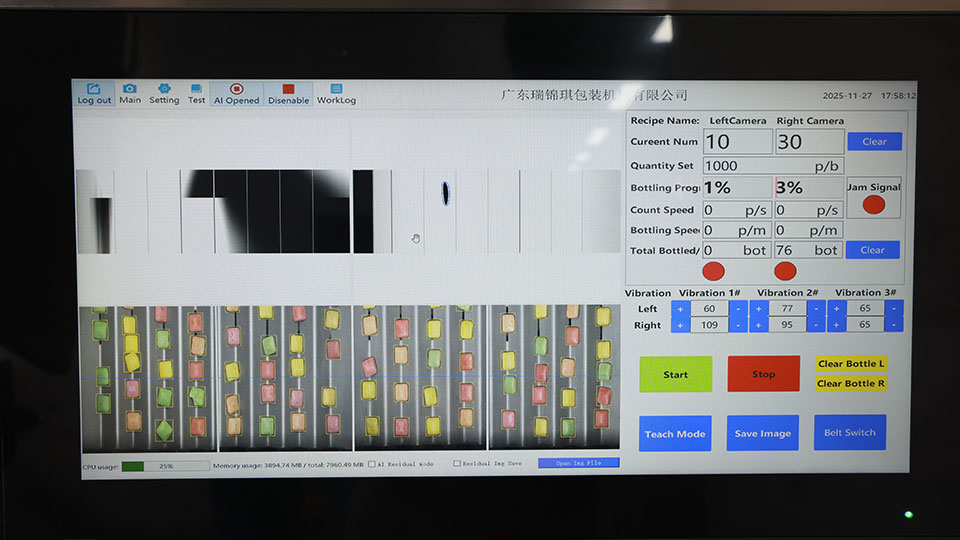

unqualified pieces vision recognition
In terms of pure production speed, RQ-DSL-16H photoelectric counting machine and RQ-DSL-16Pro vision counting bottling machine take the lead, with a maximum stable production capacity of 100 bottles per minute. They are very suitable for ultra-large-scale standardized continuous batch production and can maximize the output efficiency of single-specification product lines.
In terms of environmental adaptability and operational stability, vision counting filling machine shows obvious advantages. Traditional photoelectric sensors are highly dependent on ambient light conditions and are easily interfered by workshop dust, floating particles, and light changes. Long-term operation in complex production environments will lead to decreased sensor sensitivity and fluctuating counting accuracy.
Rich Packing visual counting machine is equipped with a self-adaptive light adjustment system and professional dust-proof image acquisition module. The system can automatically optimize image brightness, contrast, and sharpness according to real-time changes in workshop light, effectively resist dust and light interference, and maintain long-term stable and accurate detection in complex industrial production environments, with far stronger anti-interference performance than traditional photoelectric equipment.
The RQ-DSL-16H photoelectric capsule counting machine adopts a simplified modular mechanical structure with few vulnerable parts and an extremely low failure rate. The equipment is designed for quick disassembly and assembly, and the material contact channel can be disassembled and cleaned in 10 to 15 minutes without professional tools. Its low initial investment and low operating cost make it a highly cost-effective choice for cost-sensitive enterprises.
The AI CCD camera counting machine requires one-time product model training in the early stage of use. To reduce the customer’s use threshold, Rich Packing has preset one-click algorithm templates for mainstream pharmaceutical tablets, capsules, and health food materials, which can be put into use directly after simple debugging. For customers with special-shaped customized materials, our professional technical team provides free exclusive algorithm training and permanent remote upgrade services.
Although the initial purchase cost of vision counting equipment is slightly higher, it can completely save the long-term manual inspection labor cost for enterprises, and avoid huge economic losses caused by defective product outflow, batch rejections, and market recalls. From the perspective of full life cycle operation, the AI intelligent counting solution has lower comprehensive operating cost and higher economic value, which is more suitable for long-term stable development of high-standard enterprises.
As Rich Packing’s classic model, the RQ-DSL series covers multiple specifications to meet differentiated production needs, including RQ-DSL-8C for small-batch production, and RQ-DSL-16H for high-speed large-scale production. The whole machine adopts imported high-sensitivity photoelectric sensors and German FESTO counting cylinder, with stable performance, low breakdown rate, and long service life.
All parts in contact with materials are made of food-grade 304/316L stainless steel, which fully complies with cGMP, CE, ISO and other international certification standards, meeting the basic production specifications of pharmaceuticals and food. This series of equipment is widely applicable to standardized batch production of regular materials such as standard tablets, hard capsules, and candy particles. It is the preferred cost-effective equipment for generic pharmaceutical factories and conventional food packaging enterprises. Rich Packing supports 3-year global warranty and overseas engineer on-site commissioning and after-sales service, ensuring zero worries for customer production.

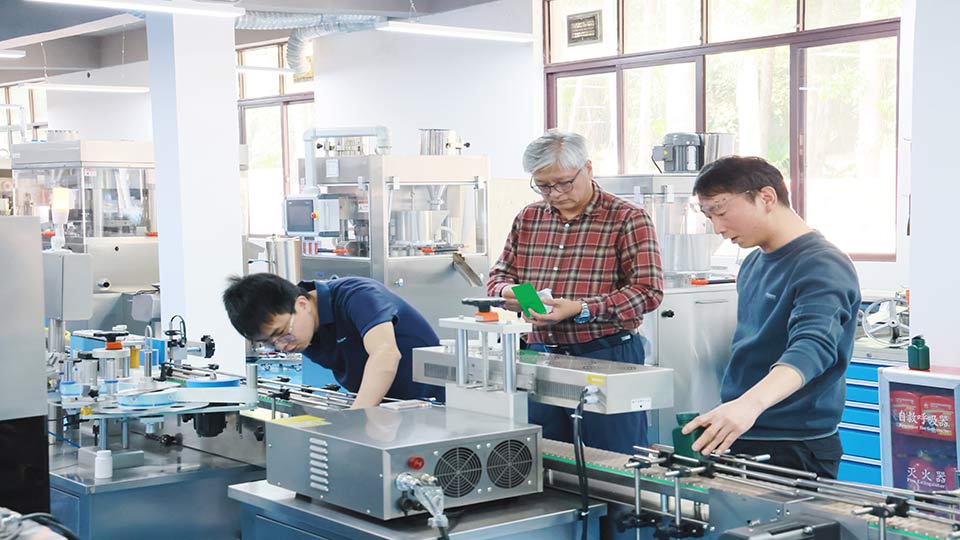

counting machine production line debugging
Rich Packing CCD camera counting machine is the flagship high-end intelligent equipment independently developed by the company, focusing on high-precision and high-standard quality control scenarios. Breaking the functional limitation of traditional counting equipment that “can only count but not inspect”, it integrates intelligent counting, full-scale defect detection, automatic defective product rejection, and production data statistics.
The equipment supports 21 CFR Part 11 compliant data logging, full-batch production traceability, automatic defect rate report generation, and remote algorithm upgrade, fully meeting the strict regulatory requirements of high-end markets such as the EU and the United States. It helps export-oriented enterprises and high-end brand manufacturers build fully automated zero-defect production lines, effectively improve product market competitiveness, and completely avoid quality compliance risks and brand reputation losses caused by defective product outflow.

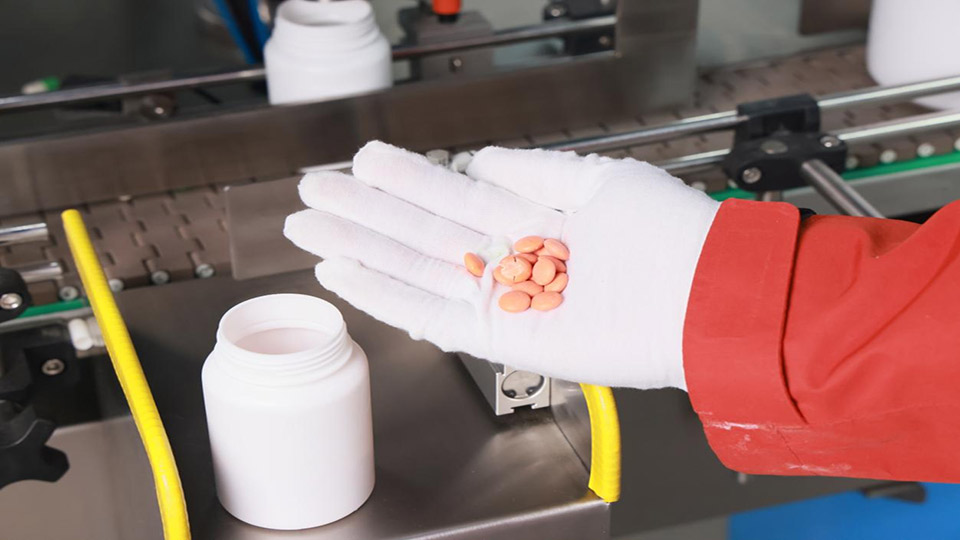

broken tablet rejection by vision counting filling machine
For manufacturers engaged in long-term mass production of single-specification regular particles, focusing on production speed and initial cost control, and equipped with a complete manual re-inspection system, the RQ-DSL-16H photoelectric tablet counting machine is the most cost-effective and stable choice. It perfectly matches standardized, large-batch, and low-defect-rate production modes, helping enterprises maximize output and control factory operating costs.
For enterprises producing special-shaped, transparent, tiny and high-value granular products, facing international high-standard market supervision, pursuing zero defective product outflow, and eager to eliminate manual inspection links to realize full-process automated production, the vision counting bottling machine is the best upgrading solution. Rich Packing always adheres to the customer-oriented service concept, does not blindly recommend high-priced equipment, and provides personalized customized counting solutions according to customers’ actual production conditions and development needs.
Q1: What is the key difference between photoelectric counting machine and CCD camera counting machine?
A: The RQ-DSL-16H photoelectric model only finishes quantity counting via laser light induction, with no defect screening function. The vision counting packing machine adopts deep learning CCD recognition; it completes accurate counting while automatically identifying and rejecting cracked, empty, discolored or deformed pills without stopping the line.
Q2: Which Rich Packing model works better for dusty pharmaceutical production workshops?
A: The AI visual counting machine has stronger anti-interference performance. It is fitted with adaptive fill light and dust-proof image modules to stabilize detection. Photoelectric lenses easily collect dust, causing slow signal attenuation, blind spots and missed counts even with regular cleaning.
Q3: Is the higher upfront cost of AI vision counting equipment worth the investment long-term?
A: Yes for most export and high-quality-focused factories. Though its initial price is higher, it removes the need for manual post-inspection labor, eliminates losses from recalled defective batches, and complies with strict 21 CFR Part 11 and EU audit standards. Cost-effective DSL photoelectric units remain ideal for mass generic tablet production with existing manual checking workflows.
Q4: What production speed can I expect from Rich Packing’s two counting machine lines?
A: Both RQ-DSL-16H photoelectric counting machine and AI vision counting packing machine support a stable maximum output of 100 bottles per minute. The AI model maintains full-speed operation even when running counting and defect rejection simultaneously.
